| Description |

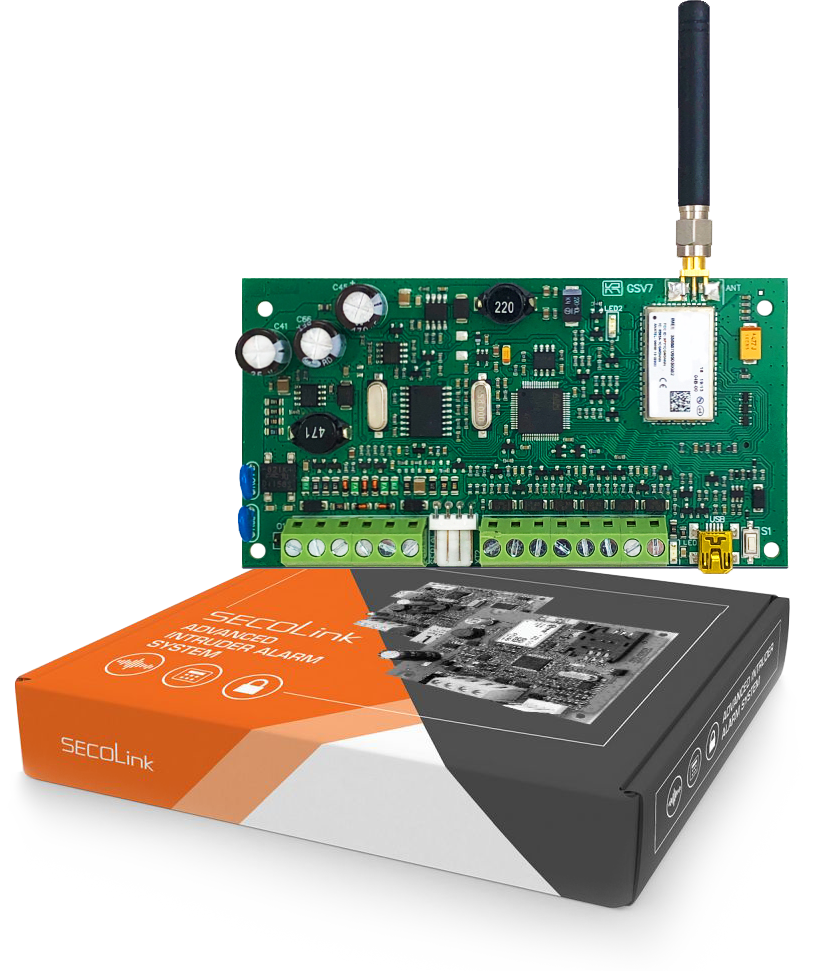

Versatile GSM/GPRS communicator |
| 3 different versions |
• GSV7 for 2G (900/1800. Europe, Asia, Africa, Brazil) |
| • GSV7.4X for 2G, 3G (multi region) |
| • GSV7.M1 for 2G, CAT M1, IoT NB (multi region) |
| Product type |
Communicator |
| In-built wired zones on board |
6 |
| On-Board (open collector type) PGM |
2 |
| Reporting to CMS format |
CID by GPRS |
| Reporting protocols for CMS |
E2 (Enigma), FIBRO (Sur-gard), CSV (Patriot), SIA |
| Compatibility with control panels via KEYBUS |
PC5xx, PC14xx, PC15xx, PC16xx, PC18xx |
| Compatibility with control panels via SERIAL |
SP4xxx, SP6xxx, SP7xxx, EVOxxx, MG5xxx |
| Compatible with SG-SYSTEM II , III IP card |
Yes |
| Alarm message for end user |
SECOLINK PRO app |
| DTMF converting from PSTN to GPRS |
Yes (one way) |
| Available in plastic enclosure |
Yes |
| Maximum current into -PGM1 |
-0.05 A |
| Maximum current into -PGM2 |
-0.05 A |
| Power supply |
12-19V (DC) or 16.5V (AC) |
| Current consumption |
50 mA |
| Current consumption with all PGM's |
260 mA |
| Overall dimensions W x H in mm |
120 x 64 |
| Environmental compliance |
ROHS |
| Operating temperature |
From -10oC to +50oC |
| Interface for communicator settings programming |
USB, SMS messages |
| Interface for communicator firmware updating |
USB, GPRS |
